Penetrant Testing

Contrôle luminescent de ressuage Corelec

Efficiently control the quality of your metals with CORELEC ÉQUIPEMENTS

CORELEC Équipements specialises in the design and manufacture of equipment for coloured penetrant testing (PT) and fluorescent penetrant inspection (FPI) for the non-destructive testing (NDT) of surface defects.

We offer complete manual, semi-automatic or automatic solutions, either through dipping, spraying or even mixed configuration (tanks and/or booths).

Ergonomics and operator safety are at the very heart of our approach in the design of PT installations to ensure operator well-being and prevent health and safety risks.

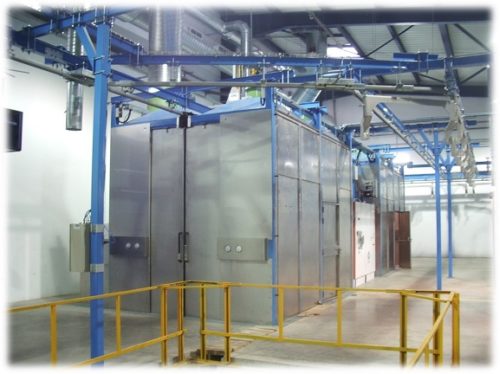

Photo d'une chaine de Ressuage Corelec

A team of experts at your service

When you choose CORELEC Équipements, you benefit from an experienced, responsive team that is attentive to your needs, from the initial definition of your project to its completion.

Our team consists of:

  • Sales engineers
  • Business experts
  • Technicians and engineers from mechanical, hydraulic, pneumatic, electrical, automation and industrial IT design offices
  • Specialised technicians and installers
  • Certified trainers

Our state-of-the-art manufacturing facilities are grouped together on a single 10,000 m² site and cover all our areas of expertise.

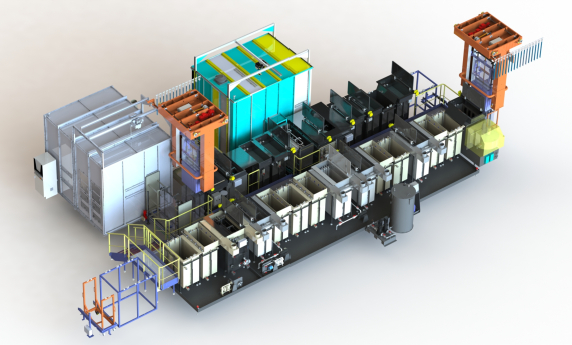

Vue 3D d'une chaine de Ressuage Corelec

Your project is unique and so is our approach

Because each project is unique, we deliver a high-quality, tailor-made non-destructive penetrant testing system that is innovative, scalable and efficient.

With their high operational flexibility, our equipment provides you with total control of the times demanded by the various PT processes.

Our equipment allows you to control processes in accordance with NADCAP specifications and other specifications demanded by aerospace, automotive, energy, medical or nuclear customers and contractors.

With the collaboration of our surface treatment and waste treatment departments, we are able to offer complete turnkey technical solutions.

We design, manufacture and install all equipment required for a PT installation :

  • Spray or dipping tanks
  • Single or multiprocessing booths
  • Drying stations
  • Spray systems by air or electrostatic gun
  • Washing/rinsing stations
  • Drip stations
  • Specialist tools
  • Ventilation in accordance with current standards
  • Closures
  • Part-handling robots
  • Frame structures
  • Tool sets
  • Measurement sensors for control checks and traceability

Our penetrant testing equipment

Cabine de ressuage avec révélateur chez Corelec

CORELEC  Équipements  designs tailor-made equipment and manufactures and installs the various stations making up a PT installation :

  • Application of the penetrant by dipping (immersion) or by spraying (conventional or electrostatic) for various levels of sensitivity (S2, S3, S4, N2, N3, etc.)
  • Rinsing/washing/ pre-washing by spraying with a motorised system or manual gun
  • Emulsification by dipping and spraying (if using a post-emulsion penetrant) followed by an emulsifying stop (stop bath)
  • Drying of parts
  • Application of developer by electrostatic gun or suspension in a liquid carrier
  • Control cabin under ultraviolet lighting (for fluorescent penetrant) or daylight (for coloured penetrant)

Types of PT installations

  • Manual PT installations
  • Semi-automatic PT installations
  • Automatic PT installations

Types of handling

  • Manual or trolley
  • Conveyor
  • Robot
  • Others

High-quality machines

The advantages of our PT installations

  • High reliability for the detection of open and surface defects
  • Able to reach defects in various positions and orientations on the parts to be checked
  • Suitable for parts of variable dimensions and complex shapes
  • Able to check a part with the minimum number of operations
  • Can process a large number of small and medium parts at a time
  • Easy integration within production or maintenance lines
  • Can be directly integrated into preparation and surface treatment lines to minimise part handling
  • Manual or automatic traceability of all Penetrant Testing stages

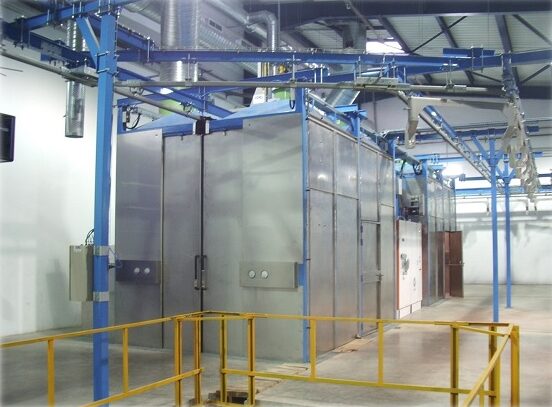

Installation de ressuage chez Corelec

CORELEC Équipements, transverse Penetrant Testing solutions adapted to your needs

Thanks to our multiple departments and broad business expertise, we can integrate our equipment into a 360° turnkey solution.

In fact, we also offer solutions for other necessary Penetrant Testing operations, such as:

  • Surface preparation (part-degreasing line, surface stripping, associated rinsing, drying, etc.)
  • Treatment of cleaning water, rinsing water, and air (Environment department)

This way, we maintain continuity between your pre/post-treatment and Penetrant Testing operations, avoiding unnecessary handling and tool changes between the different processes, all while ensuring full traceability.

Because we are able to cover various supporting activities, you will have a single point of contact for any projects involving multiple processes and departments.
